64-CHANNEL μECoG · 30 kS/s · 1.82 ms

Intent, decoded
before the hand moves

Synapse reads cortical surface potentials through a 1.8 mm-thin array and turns them into device commands in under two milliseconds — faster than the signal reaches the muscle. The raster on the right is a simulation of that stream, not a recording of a person.

Read the numbers Our implant ethics
SPIKE RASTER · 64 CH · SIMULATED 2.0 s window
each tick — one detected spike · bursts are channel-sync events

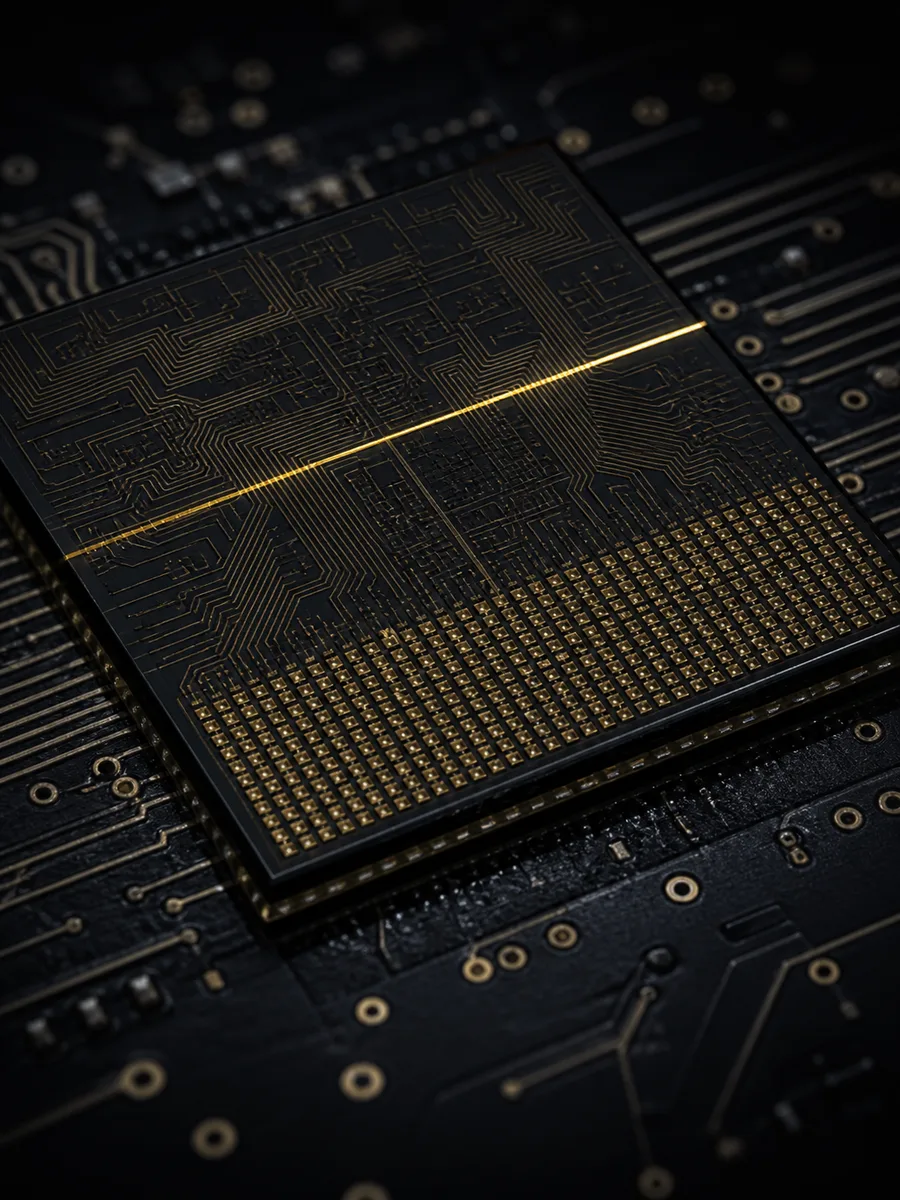

A black silicon neural interface die with dense gold traces and a micro-electrode grid at one edge
SYN-64 die · 4.2 × 4.2 mm · gold on black silicon

Thin enough
to be forgotten

The array sits on the cortical surface, under the dura — 1.8 mm thin, 64 electrodes at 2.5 mm pitch. No puncturing tissue, no threads into the parenchyma. Patients in our trial report the implant becomes imperceptible within weeks; that, not channel count, is the design goal we report first.

The die photographs are of the actual implant, not renders. What you see is what a surgeon holds.

Numbers, with their conditions

Measured performance — metric, value, measurement condition
Metric Value Condition
Decode latency 1.82 ms p50 · on-device inference · 12 participants
Raw sampling 30 kS/s per channel · 24-bit ΔΣ
SNR 18.4 dB referenced to skull electrode · chronic week 26
Gesture classes 11 offline, cross-validated · 94.1% ± 1.8
Wireless link — transcutaneous power + 2.4 GHz telemetry

All values from the first-in-human trial (N=12), 2025-09 – 2026-06. Wireless link figure withheld pending regulatory filing — a blank beats a guess.

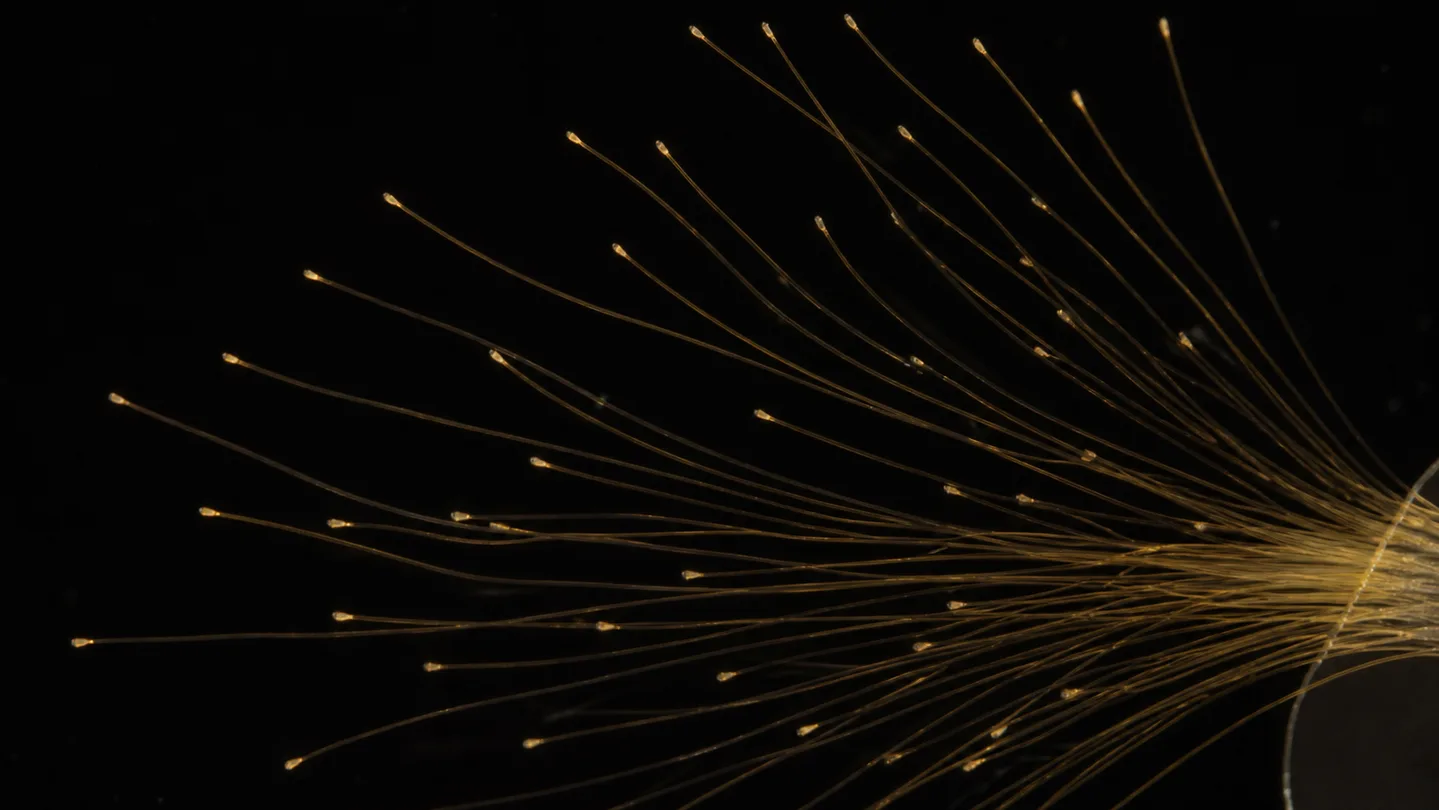

Dozens of fine gold-tipped microelectrode threads fanning out across a dark stage under a microscope
Electrode fan-out · microscope stage · no color grading

What we will not do

  • No neural advertising

    Decoded signals are commands, not content. We do not build — or license — emotion or attention inference.

  • Participants can leave

    Explantation on request within 30 days, at our cost, at any point in the trial. Three participants have exercised it.

  • Raw data stays in the vault

    Raw neural data never leaves our encrypted cluster. Published figures are aggregate statistics, as on this page.

Research contact

Trial enrollment is closed. Collaboration and data-access inquiries from accredited institutions:
